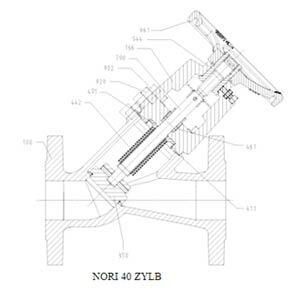

technical-typename_nori40-zysb-mediasuperZoom

KSB  |  globe valve  |  NORI40 - ZYSB  |  carbon steel

PCF Declaration available. Learn more
Select product configuration

Reset selection

DN

15
20
25
32
40
50
65
80
100
125
150
200
250
300

Pressure Nominal

25
40

Seal

metalic

Connection

Flanges

Valve Actuator

handwheel

Product Description

Specifications

Information & Downloads

Globe valve NORI40 - ZYSB by KSB made of carbon steel according to DIN/EN with welding ends or flanges. Features include bellows, sloped top part, replaceable throttle cone (up to DN 100) or shut-off cone (from DN 125), one-piece non-rotating spindle with position indicator, stroke limiter, and locking device. Sealing surfaces made of wear-resistant and corrosion-resistant chrome or chrome-nickel steel. Suitable for DN 15 to DN 300, pressure ratings PN 25 and PN 40, temperature range from -10 °C to +450 °C. High safety through chambered cover seal, double spindle sealing with bellows and graphite safety stuffing box. Armored seat ensures long service life. Space-saving design with non-rising handwheel. Economical due to cast housing with optimized internal contour and low zeta values. Ideal for combined shut-off and throttling applications. All information provided for technical reference only. Subject to change and correction.
NORI40 - ZYSB
globe valve
1.0619
carbon steel

You have questions about this product?

Please use our contact form, we will get back to you as soon as possible.

Important note: The information contained in this product description about the nature or usability of materials or products are not property warranties, but serve as a description. The information with which we wish to advise you is based on the manufacturer's experience and our own. We cannot guarantee the results of the processing and utilization of the products.

The product images shown here may differ from the original material due to production reasons. Colors and surfaces vary due to individual settings such as resolution and color/brightness settings of your display device.

Errors and omissions excepted.
